SLPPB50BSR3EH

Name: Amphenol SLPPB50BSR3EH
Brand: Amphenol Industrial
SKU: 654-SLPPB50BSR3EH
Price: 20.29 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

654-SLPPB50BSR3EH

Mfr. No:

SLPPB50BSR3EH

Mfr.:

Amphenol Industrial

Description:

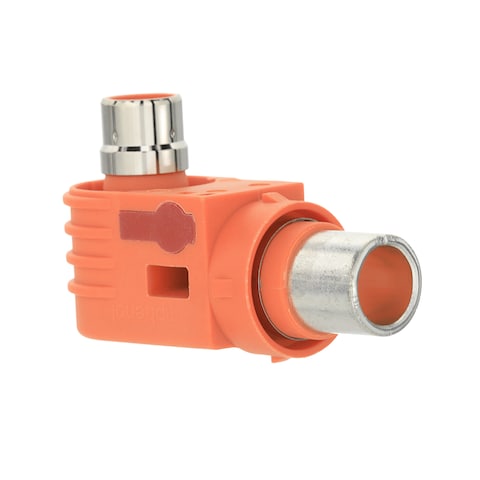

Heavy Duty Power Connectors 8.0mm RAPlugEMI&HVIL Red 120Keyway

Datasheet:

SLPPB50BSR3EH Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Industrial SLPPB50BSR3EH

In Stock: 42

Stock:: 42 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 8 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 42 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	20,29 €	20,29 €
	18,69 €	186,90 €
1.000	Quote

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Heavy Duty Power Connectors
RoHS:
Series:	SurLok EMI
Product:	DC Plugs
Accessory Type:	8 mm Surlok Plus Plug
Current Rating:	200 A
Number of Positions:	1 Position
Termination Style:	Crimp
Voltage Rating:	1 kV
Insert/Contact Gender:	Pin (Male)
Housing Material:	Thermoplastic (TP)
Contact Plating:	Silver
Contact Material:	Copper
Wire Gauge Max:	1 AWG
IP Rating:	IP67
Tradename:	SurLok Plus
Application:	Industrial
Brand:	Amphenol Industrial
Contact Gender:	Pin (Male)
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Colour:	Red
Housing Gender:	Male
Maximum Operating Temperature:	+ 125 C
Minimum Operating Temperature:	- 40 C
Mounting Angle:	Right Angle
Mounting Style:	Free Hanging
Product Type:	Heavy Duty Power Connectors
Factory Pack Quantity:	1
Subcategory:	Power Connectors

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
BRHTS:: 85389090
ECCN:: EAR99

SurLok Plus™ EMI Connectors

Amphenol Industrial SurLok Plus™ EMI Connectors are highly reliable, field-installable compression lugs that feature EMI protection and R4 RADSOK® contact technology. This series offers the same high performance as the original but includes EMI shielding, which is ideal for the EV market and its applications. These connectors use industry-standard crimp, screw, and busbar termination options, eliminating the need for special torque tools. The RADSOK contact technology uses high tensile properties of stamping and forming and high conductivity alloy grid to produce low insertion forces. Amphenol Industrial SurLok Plus EMI Connectors feature a quick-lock and press-to-release design, a secondary locking system, and a wide amperage range of 150A to 250A. These IP67-rated connectors offer a UL 94V-0 flammability rating and are available in sizes of 5.7mm to 10.3mm.
