PSAS4F2130122TR

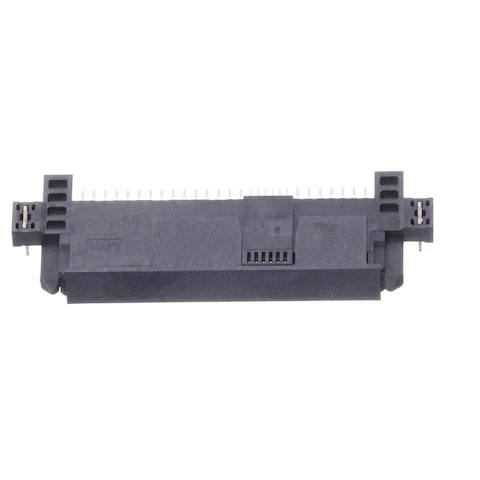

Name: Amphenol PSAS4F2130122TR
Brand: Amphenol FCI
SKU: 649-PSAS4F2130122TR
Price: 6.53 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

649-PSAS4F2130122TR

Mfr. No:

PSAS4F2130122TR

Mfr.:

Amphenol FCI

Description:

PCI Express/PCI Connectors SAS/PCIe 40 U3 Connectors 68pin Right Angle Surface Mount Receptacle

Datasheet:

PSAS4F2130122TR Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol FCI PSAS4F2130122TR

Availability

Stock:: Non-Stocked

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time.

Enter Quantity:

Minimum: 5250 Multiples: 1050

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

This Product Ships FREE

Pricing (EUR)

Qty.	Unit Price	Ext. Price
Full Reel (Order in multiples of 1050)
	6,53 €	34.282,50 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	PCI Express/PCI Connectors
RoHS:
Brand:	Amphenol FCI
Packaging:	Reel
Product Type:	PCI Express / PCI Connectors
Factory Pack Quantity:	1050
Subcategory:	Card Edge Connectors
Unit Weight:	3 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

PSAS4F2130122TR Datasheet (PDF)

Specification Sheets

Drawing (PDF)

This functionality requires JavaScript to be enabled.

Compliance Codes

TARIC:: 8536693000
CNHTS:: 8536901100
USHTS:: 8536694040
ECCN:: EAR99

Origin Classifications

Country of Origin:: China
Assembly Country of Origin:: Not available
Country of Diffusion:: Not available

The country is subject to change at the time of shipment.

SAS/PCIe 4.0 (U2 & U3) Connectors

Amphenol Commercial SAS/PCIe® 4.0 (U2 and U3) Connectors feature 16GT/s (PCIe lanes) or 24Gb/s (SAS lanes) speeds to meet the demands of next-generation servers. These connectors support up to four-port 16GT/s PCle-based devices and both SAS and SATA drives. Amphenol SAS/PCIe 4.0 Connectors offer staggered contact lengths and stamped clips that provide sequential contact mating for hot plugging and additional mechanical strength after soldering. The series has a durability rating of 500 mating cycles. Ideal applications are storage serves, mezzanine cards, and external storage systems.
