HFW22R-2STE1H1LF

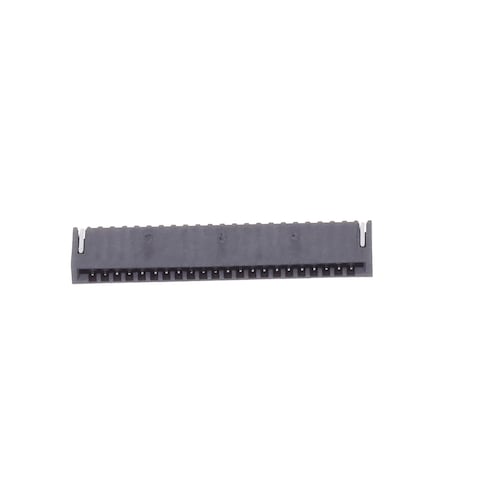

Name: Amphenol HFW22R-2STE1H1LF
Brand: Amphenol FCI
SKU: 649-HFW22R-2STE1H1LF
Price: 0.45 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

649-HFW22R-2STE1H1LF

Mfr. No:

HFW22R-2STE1H1LF

Mfr.:

Amphenol FCI

Description:

FFC & FPC Connectors 1.00mm Flex Connector, HFW-R series, 22 Position, Top Side Contact, Side Entry Surface Mount Non-ZIF Connector, Tin plated Terminals, Halogen free.

Datasheet:

HFW22R-2STE1H1LF Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

In Stock: 3.130

Stock:: 3.130 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 10 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	0,456 €	0,46 €
	0,401 €	4,01 €
	0,366 €	9,15 €
	0,33 €	33,00 €
	0,302 €	75,50 €
	0,25 €	250,00 €
Full Reel (Order in multiples of 2000)
	0,234 €	468,00 €
	0,223 €	892,00 €
	0,212 €	2.120,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	FFC & FPC Connectors
RoHS:
Product:	Headers
Number of Positions:	22 Position
Pitch:	1 mm
Termination Style:	SMD/SMT
Mounting Angle:	Right Angle
Contact Location:	Top Contact
Contact Plating:	Tin
Current Rating:	1 A
Series:	HFW-R
Minimum Operating Temperature:	- 55 C
Maximum Operating Temperature:	+ 105 C
Packaging:	Reel
Packaging:	Cut Tape
Actuation Type:	Non ZIF
Brand:	Amphenol FCI
Contact Material:	Phosphor Bronze
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	MY
Flammability Rating:	UL 94 V-0
Housing Colour:	Black
Housing Material:	Thermoplastic (TP)
Mounting Style:	SMD/SMT
Product Type:	FFC & FPC Connectors
Factory Pack Quantity:	2000
Subcategory:	FFC & FPC Connectors
Voltage Rating:	100 VAC/100 VDC
Unit Weight:	304,360 mg

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

HFW22R-2STE1H1LF Datasheet (PDF)

PCN

Product Change Notification (PDF)

Specification Sheets

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

FFC/FPC Flexible Circuit Connectors

Amphenol FCI FFC/FPC Flexible Circuit Connectors feature an expansive range of innovative connector solutions that terminate FFC/FPC. These Amphenol FCI connectors include low insertion force (LIF) and zero insertion force (ZIF), top and bottom contact options, vertical and right-angle orientations, surface-mount, and through-hole terminations in contact spacing options all the way down to 0.50mm. Additional features, such as optional cable locks and additional mounting devices, ensure an ideal solution for demanding applications.
