95000-108LF

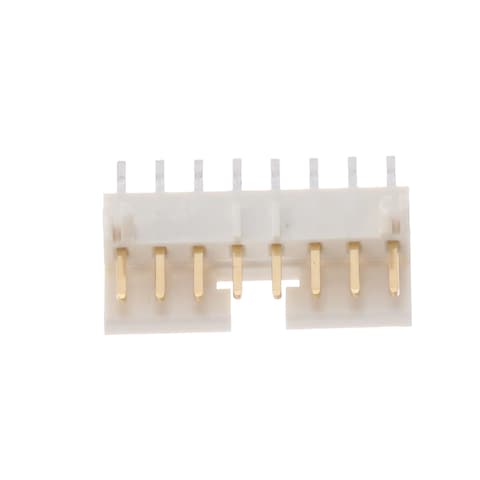

Name: Amphenol 95000-108LF
Brand: Amphenol FCI
SKU: 649-95000-108LF
Price: 2.06 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

649-95000-108LF

Mfr. No:

95000-108LF

Mfr.:

Amphenol FCI

Description:

Board to Board & Mezzanine Connectors SMT Header SR, Polar Latching, 8P, .76um

Lifecycle:

Factory Special Order:

Obtain a quote to verify the current price, lead-time and ordering requirements of the manufacturer.

Datasheet:

95000-108LF Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol FCI 95000-108LF

In Stock: 5.879

Stock:: 5.879 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 14 Weeks Estimated factory production time for quantities greater than shown.

Quantities greater than 5879 will be subject to minimum order requirements.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	2,06 €	2,06 €
	1,75 €	17,50 €
	1,55 €	155,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	Board to Board & Mezzanine Connectors
RoHS:
Product:	Headers
Number of Positions:	8 Position
Pitch:	2 mm (0.079 in)
Number of Rows:	1 Row
Termination Style:	Solder
Mounting Angle:	Right Angle
Current Rating:	2 A
Minimum Operating Temperature:	- 40 C
Maximum Operating Temperature:	+ 125 C
Contact Plating:	Gold
Contact Material:	Copper Alloy
Housing Material:	Thermoplastic (TP)
Series:	Minitek
Packaging:	Bulk
Application:	Board-to-Board
Brand:	Amphenol FCI
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	FR
Insulation Resistance:	1 GOhms
Mounting Style:	SMD/SMT
Product Type:	Board to Board & Mezzanine Connectors
Factory Pack Quantity:	500
Subcategory:	Board to Board & Mezzanine Connectors
Termination Post Length:	2.37 mm (0.093 in)
Tradename:	Minitek

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

95000-108LF Datasheet (PDF)

Images

Drawing (PDF)

Models

Product Catalogs

Product Presentation (PDF)

Specification Sheets

Product Specification (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536693000
CNHTS:: 8536901900
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Minitek® 2.00mm Space-Saving Connectors

Amphenol FCI Minitek® 2.00mm Space-Saving Connectors include single and double row receptacles for Board-to-Board and Wire-to-Board applications, in 2 to 25 positions per row and in vertical and horizontal configurations. The fully modular system enables all types of connections between PCBs, wires, and flat cables. The connector's 2.00mm spacing allows up to 38% space savings when compared to traditional modular systems. With a very low coplanarity at 0.1mm, these connectors facilitate automatic placement. The Minitek® 2.00mm Space-Saving Connectors modular system ensures an interchangeable solution for flexible design.
