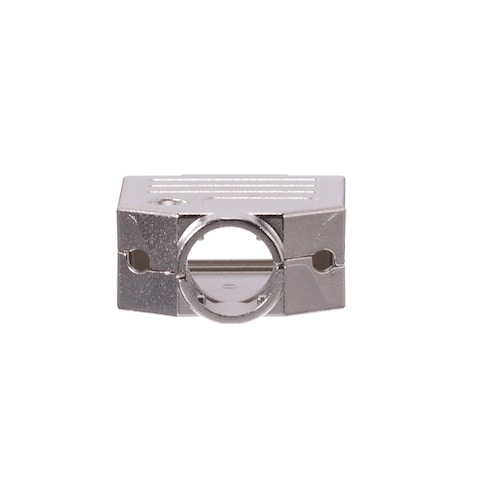

165X02609X

Amphenol CONEC

Images are for reference only
See Product Specifications

Mouser No:

706-165X02609X

Mfr. No:

165X02609X

Mfr.:

Amphenol CONEC

Description:

D-Sub Backshells 9P EMI/RFI SHIELDING METAL HOOD

Datasheet:

165X02609X Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.
On Order:: 689

Expected 8/21/2026
Factory Lead Time:: 25

Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,56 €	5,56 €
	5,32 €	53,20 €
	4,47 €	111,75 €
	4,46 €	223,00 €
	4,33 €	433,00 €
	4,24 €	1.060,00 €
	4,23 €	2.115,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	D-Sub Backshells
RoHS:
Type:	EMI/RFI Shielded Backshell
Shell Size:	1 (E)
Cable Entry Angle:	Straight
Number of Cable Entries:	1 Entry
Shell Material:	Zinc
Shell Plating:	Nickel
Number of Positions:	9 Position
Packaging:	Bulk
Brand:	Amphenol CONEC
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	DK
Flammability Rating:	UL 94 V-0
Product Type:	D-Sub Backshells
Factory Pack Quantity:	1
Subcategory:	D-Sub Connectors
Unit Weight:	47,400 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

165X02609X Datasheet (PDF)

Models

165X02609X (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8538909999
CNHTS:: 8538900000
CAHTS:: 8538909090
USHTS:: 8538908180
JPHTS:: 853890000
BRHTS:: 85389090
ECCN:: EAR99
