HPT-3-FD

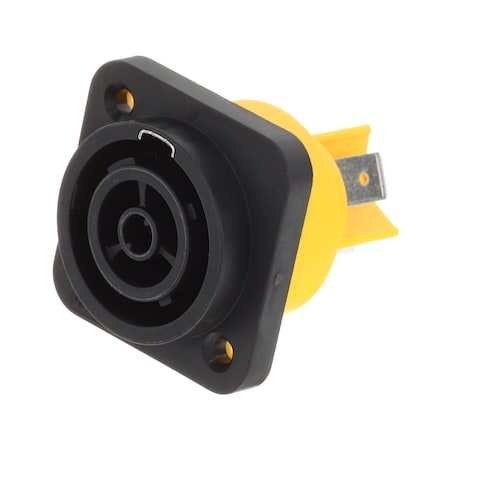

Name: Amphenol HPT-3-FD
Brand: Amphenol Audio
SKU: 523-HPT-3-FD
Price: 5.47 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-HPT-3-FD

Mfr. No:

HPT-3-FD

Mfr.:

Amphenol Audio

Description:

AC Power Plugs & Receptacles Femal/Outlet Pnl Mnt Spade Lug Term

Datasheet:

HPT-3-FD Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Audio HPT-3-FD

In Stock: 277

Stock:: 277 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	5,47 €	5,47 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	AC Power Plugs & Receptacles
RoHS:
Product:	Outlets
Current Rating:	20 A
Voltage Rating:	250 V
Mounting Angle:	Straight
Mounting Style:	Panel
Color:	Black
Number of Ports:	1 Port
IP Rating:	IP65
Series:	HPT
Packaging:	Bulk
Brand:	Amphenol Audio
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Material:	Thermoplastic (TP)
Maximum Operating Temperature:	+ 80 C
Minimum Operating Temperature:	- 25 C
Product Type:	AC Power Plugs & Receptacles
Factory Pack Quantity:	50
Subcategory:	Power Connectors
Termination Style:	Solder

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8536901900
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

HPT Power Connectors & Accessories

Amphenol Audio HPT Power Connectors and Accessories provide safety and reliability improvements while being plug-compatible with the original and latest industry-standard products. The series offers an easy-to-use patented cable clamp lock design safety feature, UL recognition, and VDE approval to IEC 61984 to deliver up to 5000 circuit-breaking mating cycles. These connectors are ideal for use in AC power supplies where a durable latch-locking connector is required. The HPT series is rated at 20A at 250V (16A at 250V EU) and can be connected or disconnected under load. Amphenol Audio HPT Power Connectors and Accessories are an extension of the HP Series (Blue/Gray) Power Connector line and can be used as drop-in replacements for lighting fixtures, video walls, special effects, powered loudspeaker, or power distribution interconnect applications.
