HP-3-MDG

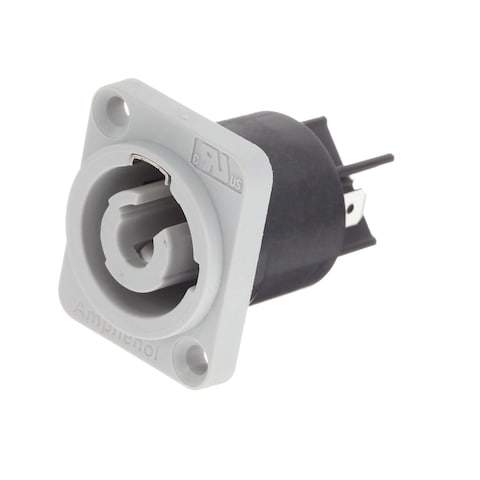

Name: Amphenol HP-3-MDG
Brand: Amphenol Audio
SKU: 523-HP-3-MDG
Price: 3.9 EUR
Availability: InStock

Images are for reference only
See Product Specifications

Mouser No:

523-HP-3-MDG

Mfr. No:

HP-3-MDG

Mfr.:

Amphenol Audio

Description:

AC Power Plugs & Receptacles AUDIO & ENTERTAINMENT-HP

Datasheet:

HP-3-MDG Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Audio HP-3-MDG

In Stock: 230

Stock:: 230 Can Dispatch Immediately

An unexpected error occurred. Please try again later.
Factory Lead Time:: 16 Weeks Estimated factory production time for quantities greater than shown.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	3,90 €	3,90 €
	3,50 €	35,00 €
	3,29 €	82,25 €
	3,12 €	156,00 €
	2,98 €	298,00 €
	2,79 €	697,50 €
	2,66 €	1.330,00 €
	2,58 €	2.580,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	AC Power Plugs & Receptacles
RoHS:
Product:	Receptacles
Current Rating:	25 A
Voltage Rating:	250 VAC
Mounting Angle:	Straight
Mounting Style:	Panel
Number of Ports:	1 Port
Series:	HP
Packaging:	Bulk
Brand:	Amphenol Audio
Contact Material:	Brass
Country of Assembly:	Not Available
Country of Diffusion:	Not Available
Country of Origin:	CN
Flammability Rating:	UL 94 V-0
Housing Material:	Polyamide (PA)
Insulation Resistance:	2 GOhms
Maximum Operating Temperature:	+ 75 C
Minimum Operating Temperature:	- 25 C
Product Type:	AC Power Plugs & Receptacles
Factory Pack Quantity:	50
Subcategory:	Power Connectors
Termination Style:	Solder
Unit Weight:	23,375 g

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8538900000
CAHTS:: 8536690040
USHTS:: 8536694030
JPHTS:: 853669000
KRHTS:: 8536699000
BRHTS:: 85366990
ECCN:: EAR99

HP Power Connectors

Amphenol Audio HP Power Connectors are ideally suited for AC power supplies that require a latch-locking connector. These connectors are rated at 25A / 250V_AC with UL- and cUL-recognized components. The series features screw terminals, a chuck-type cable clamp, and a quick-release, vibration-resistant latch lock. Amphenol Audio HP Power Connectors have a thermoplastic housing and are keyed and color-coded for power-in (blue) and power-out (gray).
