AX5F8M

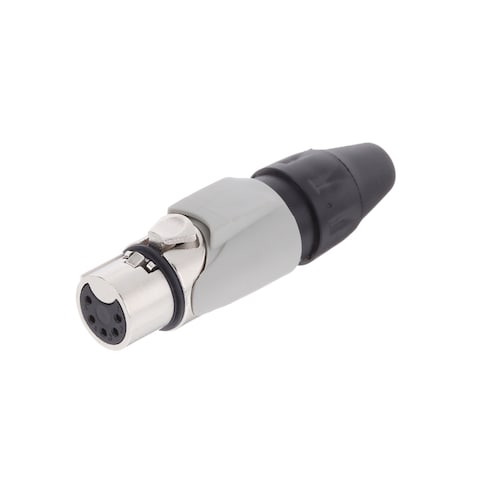

Name: Amphenol AX5F8M
Brand: Amphenol Audio
SKU: 523-AX5F8M
Price: 9.3 EUR
Availability: OutOfStock

Images are for reference only
See Product Specifications

Mouser No:

523-AX5F8M

Mfr. No:

AX5F8M

Mfr.:

Amphenol Audio

Description:

XLR Connectors 5P SOCKET F PLUG GREY MARK SLEEVE

Datasheet:

AX5F8M Datasheet (PDF)

ECAD Model:

Download the free Library Loader to convert this file for your ECAD Tool. Learn more about the ECAD Model.

More Information

Learn more about Amphenol Audio AX5F8M

Availability

Stock:: 0

You can still purchase this product for backorder.

An unexpected error occurred. Please try again later.

Enter Quantity:

Minimum: 1 Multiples: 1

Unit Price:

-,-- €

Ext. Price:

-,-- €

Est. Tariff:

Pricing (EUR)

Qty.	Unit Price	Ext. Price
	9,30 €	9,30 €
	7,89 €	197,25 €
	7,78 €	778,00 €
	7,32 €	1.830,00 €
	7,01 €	3.505,00 €
	6,72 €	6.720,00 €

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Product Attribute	Attribute Value	Select Attribute
Manufacturer:	Amphenol
Product Category:	XLR Connectors
RoHS:
Product:	Cable Connectors
Standard:	Standard XLR
Number of Positions:	5 Position
Gender:	Female
Termination Style:	Solder Cup
Mounting Style:	Cable Mount
Contact Plating:	Tin
Orientation:	Straight
Series:	AX
Brand:	Amphenol Audio
Color:	Satin Nickel, Gray
Current Rating:	7.5 A
Mating Cycles:	1000 Cycle
Product Type:	XLR Connectors
Shell Plating:	Nickel
Factory Pack Quantity:	25
Subcategory:	Audio & Video Connectors
Voltage Rating:	133 V

Products found:

To show similar products, select at least one checkbox

Select at least one checkbox above to show similar products in this category.

Attributes selected: 0

Filter Document:

Datasheet

AX5F8M Datasheet (PDF)

This functionality requires JavaScript to be enabled.

TARIC:: 8536699099
CNHTS:: 8536690000
CAHTS:: 8536690030
USHTS:: 8536694020
JPHTS:: 853669000
KRHTS:: 8536699000
MXHTS:: 85366999
BRHTS:: 85366990
ECCN:: EAR99

AX MARK Color Coding Sleeve System

Amphenol Audio AX MARK Color Coding Sleeve System is designed for use on male or female XLR connectors to provide multiple options for customizing cable systems with unique identifiers. The sleeves feature an ample, flat marking surface for printing channel ID, cable length, or custom logos with ten colors available. Existing marking equipment can be used to ink stamp, heat transfer, or laser mark the sleeve in the field. The sleeves can also be changed out on already terminated AX connectors, future-proofing cabling field configurations to the existing inventory of AX connectors. The Color Coding Sleeve System also includes AX cable connectors pre-fitted with various marking sleeves.

AX Professional XLR Cable Connectors

Amphenol Audio AX Professional XLR Cable Connectors complement the latest audio architectures, fit ideally with their environment, and ensure pure sound performance in demanding applications. These connectors feature a one-piece ground / latch spring design that incorporates twin wipe contacts for a direct connection path from mating shell to ground. This design provides enhanced connection and electromagnetic interference (EMI) performance. Amphenol Audio AX XLR Cable C Connectors are available in 3-, 4-, and 5-contact arrangements.
